WDX Slide Rail Linear Bearings


SLIDE RAIL BEARINGS represent the latest in sliding friction - low profile rail guide - technology. Slide Rail's unique 45 degree load plane ensures moderate load/speed capacity coupled with easy, quiet linear motion. Slide Rails are FDA/USDA compliant. NOTE: due to the differences between rolling and sliding friction, these systems are not interchangeable with IKO, THK, STAR, SCHNEEBERGER or their like. Slide rails are inch as opposed to metric. Please call for engineering review where moment
( overturning ) loads are present. 1-800-513-3163

Rail Material:

Ceramic Coated Aluminum
FDA/Washdown Compliant

Block Material

Block is WDX Polyethylene
FDA/Washdow Approved

  • FDA/USDA Compliant
  • Contamination Tough
  • Wash Down Friendly
  • Shock & Vibration
  • Smooth, Quiet
    Linear Motion

LM76 Slide Rails are an outstanding choice
for automation, food process, medical, pharmaceutical and semiconductor equipment.


MAX PV Max PSI Max Velocity Coefficient of Friction Operating Temp
4000 1200 50 SFM 0.14 - 460° to + 180° F

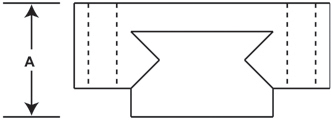

P/N Block and Rail Assembled
LBR1 0.563 +/- .002 50 50 50 200 200 200
ASSEMBLY A A
Tolerance		 DYNAMIC LOAD DOWN DYNAMIC LOAD SIDE DYNAMIC LOAD UP STATIC LOAD DOWN STATIC LOAD SIDE STATIC LOAD
UP
LBR2 0.750 +/- .002 100 100 100 450 450 450
LBR3 0.875 +/- .002 200 200 200 700 700 700

BLOCK DIMS A B C D E F F1
P/N
LB1 1.00 0.500 1.250 0.750 0.750 M3 8
LB2 1.250 0.625 1.750 1.000 1.000 M3 8
LB3 1.750 0.750 2.000 1.250 1.250 M4 10
RAIL DIMS A B C D E F Rail Lengths H H1 H2 H3
P/N Screw
Inch		 ± .010 ± .010 ± .010
LR1 0.500 0.310 0.060 0.480 0.500 1.000 7,13,19,25, 31 #5 .219 .138 .136
LR2 0.750 0.495 0.125 0.720 0.500 1.500 7,13,19,25, 31 #8 .3125 0.180 0.180
LR3 1.000 0.620 0.125 0.940 0.500 1.500 7,13,19,25, 31
Extruded Lengths to 10 feet Long		 #10 .375 0.220 0.206
