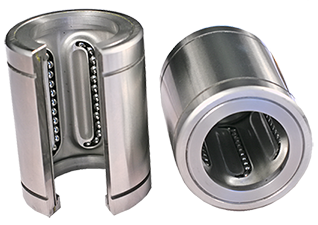

All Stainless Linear Ball Bearings

  • Low Friction
  • Corrosion Resistant
  • High Temp with High Temp Lubricant & Matching 440C Stainless Case Hardened Shafting
  • Drop-In for all Standard Linear Inch Ball Bearings - Open and Closed
  • Washdown Resistant
  • Can be Installed in LM76's NP FDA/Washdown Pillow Blocks and Flange Blocks

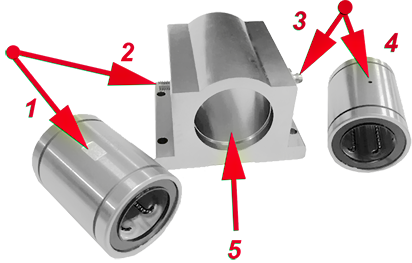

1. Flat for Anti-Rotation
2. Stainless Set Screw
3. Stainless Zerk Fitting
4. Oil Hole
5. NP FDA/Washdown Pillow Block

Stainless Linear Ball Bearings are available with our NP FDA/Washdown Closed and Open Pillow Blocks with ETX Scraper Seal Cartridges

Part Number Example: LPB16-SS16-2ETX-NP
Stainless Linear Ball Bearings are available in our NP FDA/Washdown Cloased and Open Pillow Blocks with
Zerk Grease fitting and Oil Hole

Part Number Example: LXPB16-SS16-OH-NP



Recommended FDA Lubricant - Royal Purple: http://www.royalpurpleindustrial.com/products/ultra-performance-white-fda-grease

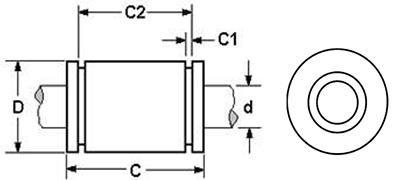

Closed Stainless Linear Ball Bearings





To Download Step Files Right Click and Choose Save Link As...Firefox or Google Chrome Download Link



Part Number Shaft Dia.
d
Class L		 OD
D		 Length
C		 Retaining Ring
Groove Width
C1		 Distance Between
Retaining Grooves		 Number of
Ball Circuits		 Bearing Weight
lbs		 Housing Bore Dia.
Slip Fit		 Dynamic Load
Capacity
SS4 1/4 .4996/.5000 0.75 0.039 .499/.515 3 0.02 .5000/5.005 19
SS6 3/8 .6246/.6250 0.875 0.039 .640/.624 4 0.06 .6250/.6255 36
SS8 1/2 .8746/.8750 1.250 0.046 .951/.967 4 0.08 .8750/.8755 85
SS10 5/8               174
SS12 3/4 1.2496/1.2500 1.625 0.056 1.54/1.170 5 0.21 1.2500/1.2505 200
SS16 1 1.5621/1.5625 2.250 0.068 1.741/1.759 5 0.38 1.5624/1.5630 350
SS20 1 - 1/4 1.9995/2.000 2.625 0.068 1.991/2.009 6 1.1 2.0000/2.0010 520
SS24 1 - 1/2 2.3745/2.3750 3 0.086 2.397/2.415 6 1.43 2.3740/2.3760 770
SS32 2 2.9994/3.000 4 0.103 3.177/3.195 6 2.75 3.0000/3.0010 1100

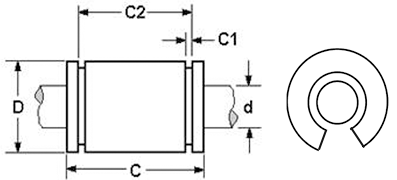

Open Stainless Linear Ball Bearings





To Download Step Files Right Click and Choose Save Link As...Firefox or Google Chrome Download Link



Part Number Shaft Dia.
d
Class L		 OD
D		 Length
C		 Retaining Ring
Groove Width
C1		 Distance Between
Retaining Grooves		 Number of
Ball Circuits		 Bearing Weight
lbs		 Housing Bore Dia.
Slip Fit		 Dynamic Load
Capacity
SS8 OPN 1/2 .8746/.8750 1.250 0.046 .951/.967 4 0.08 .8750/.8755 85
SS10 OPN 5/8
SS12 OPN 3/4 1.2496/1.2500 1.625 0.056 1.54/1.170 5 0.21 1.2500/1.2505 200
SS16 OPN 1 1.5621/1.5625 2.250 0.068 1.741/1.759 5 0.38 1.5624/1.5630 350
SS20 OPN 1 - 1/4 1.9995/2.000 2.625 0.068 1.991/2.009 6 1.1 2.0000/2.0010 520
SS24 OPN 1 - 1/2 2.3745/2.3750 3 0.086 2.397/2.415 6 1.43 2.3740/2.3760 770
SS32 OPN 2 2.9994/3.000 4 0.103 3.177/3.195 6 2.75 3.0000/3.0010 1100
